Thông tin chi tiết sản phẩm:
|
| Vật liệu: | Silicon | Màu sắc: | Đen hoặc xám |
|---|---|---|---|
| Chiều dài: | tùy chỉnh | Tên: | Ống co lại lạnh |
| Ứng dụng: | Bảo vệ cách nhiệt | Tên sản phẩm: | Bộ cách nhiệt co ngót lạnh Terminal Tink Tương tự như 3m |
| đóng gói: | GIỎ HÀNG | Mẫu miễn phí: | Đúng |
| Làm nổi bật: | outdoor cable sealing,flame-free cable installation,EPDM cold shrink tubing |
||
Product name:

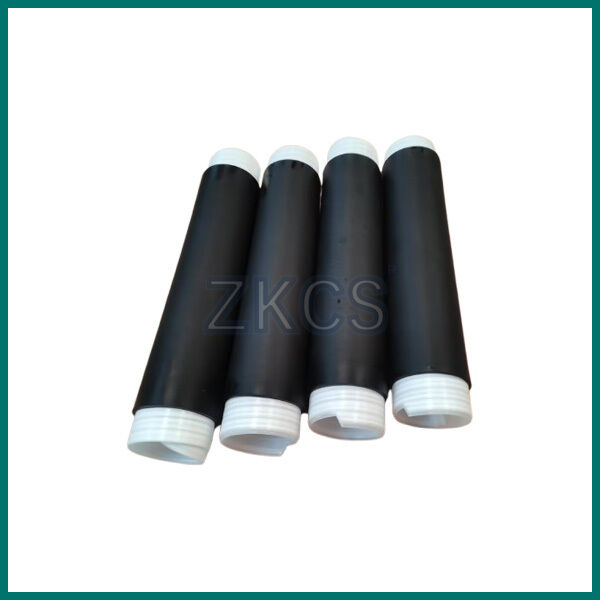

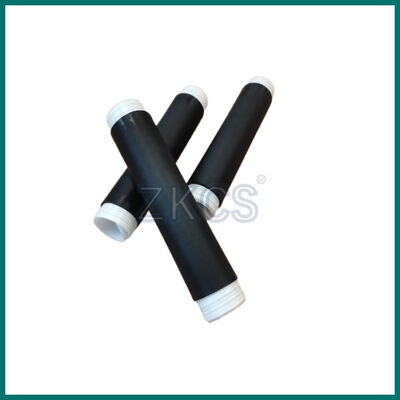

EPDM cold shrink tube for cable joint and termination protection
Description:
EPDM cold shrink tubes offer a safe, flame-free solution with consistent compression and long-lasting insulation — even in demanding conditions.
Once the core is pulled out, the tube contracts naturally and evenly around the cable, creating a secure seal without heat, flame, or special installation tools.
Features:
Applications
Picture for your reference.
Introduction:
Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
